Festo
560954

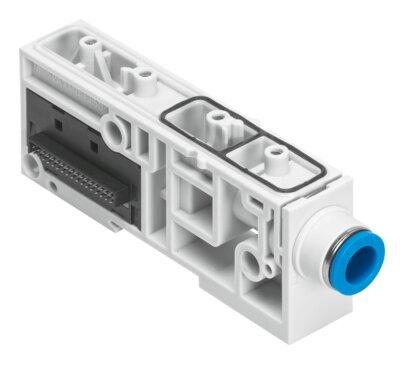

Power supply module VMPAL-SP-QS1/2"
The Festo 560954 is an industrial component featuring an electrical interlinking module and an interchangeable valve manifold design with a width of 23.2 mm, a length of 107.3 mm, and a weight of 50 g. Built with a power supply module material of wrought aluminum alloy and PA-reinforced construction, it operates at pressures ranging from -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and pilot pressures of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) within an ambient temperature range of -5 °C to 50 °C. This RoHS-compliant unit includes pneumatic connection 1 for 1/2" outside diameter pneumatic tubing, achieves a corrosion resistance class (CRC) of 3 for high corrosion stress, and conforms to VDMA24364-B1/B2-L LABS (PWIS) standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560954
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560954.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 23.2 mm
- Length
- 107.3 mm
- Integrated function
- With electrical interlinking module
- Valve manifold design
- Interchangeable valve sizes
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 50 g
- Pneumatic connection 1
- For pneumatic tubing outside diameter 1/2"
- Note on materials
- RoHS compliant
- Power supply module material
- Wrought aluminum alloy | PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560954. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
