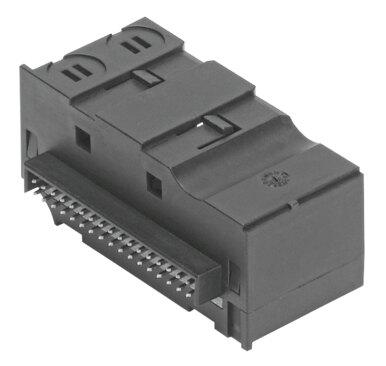

Name: Festo 560966 Electrical manifold module VMPAL-EVAP-20-2
Brand: Festo

Electrical manifold module VMPAL-EVAP-20-2

The Festo part number 560966 is an industrial component featuring a 20 mm valve size, a maximum of 1 valve position, and a maximum of 2 solenoid coils. Constructed from a black polyamide (PA) housing, this RoHS-compliant unit weighs 14 g, operates at a nominal DC voltage of 24 V within an ambient temperature range of -5 °C to 50 °C, and incorporates color-coded valve function assignment. It provides a corrosion resistance class of CRC 3 for high corrosion stress and adheres to VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 560966
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 560966.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve size: 20 mm
Max. no. of valve positions: 1
Max. no. of solenoid coils: 2
Integrated function: Valve function assignment color-coded
Nominal operating voltage DC: 24 V
Corrosion resistance class (CRC): 3 - High corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -5 °C...50 °C
Product weight: 14 g
Housing colour: Black
Housing material: PA
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 560966. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
