Festo
560967

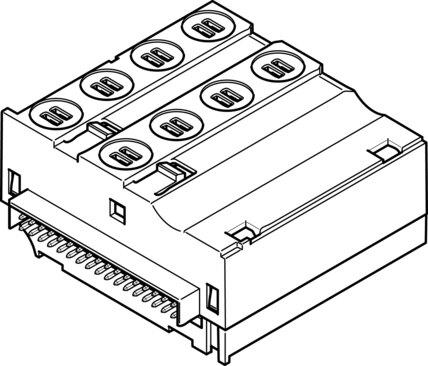

Electrical manifold module VMPAL-EVAP-10-1-4
The Festo part number 560967 is an industrial component featuring a 10 mm valve size with a maximum of 4 valve positions and 4 solenoid coils, operating at a nominal 24 V DC. Built with a gray PA housing and a product weight of 29 g, it includes a color-coded integrated function for valve function assignment and offers a CRC of 3 for high corrosion stress alongside VDMA24364-B1/B2-L LABS conformity. This RoHS compliant unit functions within an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560967
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560967.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve size
- 10 mm
- Max. no. of valve positions
- 4
- Max. no. of solenoid coils
- 4
- Integrated function
- Valve function assignment color-coded
- Nominal operating voltage DC
- 24 V
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 29 g
- Housing colour
- Gray
- Housing material
- PA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560967. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
