560970

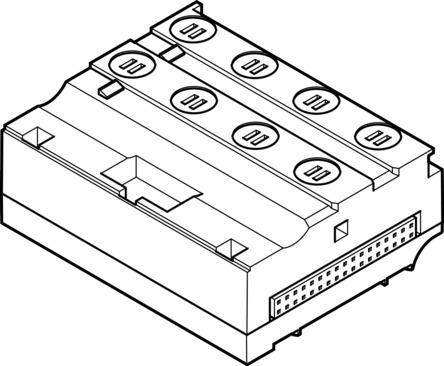

Name: Festo 560970 Electrical manifold module VMPAL-EVAP-14-2-4
Brand: Festo

Electrical manifold module VMPAL-EVAP-14-2-4

The Festo 560970 is a 29 g industrial component featuring a 14 mm valve size, a black PA housing, and a CRC rating of 3 for high corrosion stress. This unit accommodates a maximum of 4 valve positions and 8 solenoid coils, operating on a nominal 24 V DC voltage with color-coded valve function assignment. Constructed with RoHS-compliant materials and VDMA24364-B1/B2-L LABS conformity, the assembly functions within an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 560970
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 560970.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve size: 14 mm
Max. no. of valve positions: 4
Max. no. of solenoid coils: 8
Integrated function: Valve function assignment color-coded
Nominal operating voltage DC: 24 V
Corrosion resistance class (CRC): 3 - High corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -5 °C...50 °C
Product weight: 29 g
Housing colour: Black
Housing material: PA
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 560970. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
