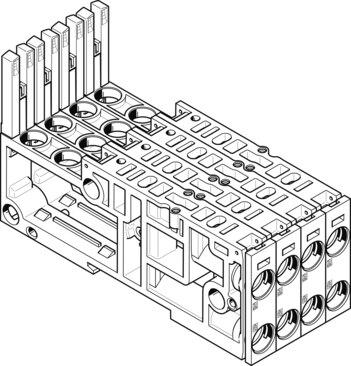

Reference imageConfirm configuration by manufacturer part number.
Festo
560981
Sub-base VMPAL-AP-4X10
The Festo 560981 is an industrial component featuring a valve size of 10 mm, a width of 42.8 mm, a length of 107.3 mm, and a weight of 100 g with a PA-reinforced sub-base material. It supports an operating pressure of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), a reversible flow direction, and a maximum of 4 valve positions. Designed with interchangeable valve sizes, it utilizes 10 mm cartridge pneumatic connections 2 and 4, operates within an ambient temperature range of -5 °C to 50 °C, and accommodates compressed air as per ISO 8573-1:2010 [7:4:4] with possible oil lubrication. Featuring a corrosion resistance class of 3 for high corrosion stress, VDMA24364-B1/B2-L LABS conformity, and RoHS compliance, this RoHS-compliant part permits operation with oil lubrication required for further use. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560981
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560981.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 42.8 mm
- Length
- 107.3 mm
- Width dimension
- 10.7 mm
- Valve size
- 10 mm
- Max. no. of valve positions
- 4
- Flow direction
- Reversible
- Valve manifold design
- Interchangeable valve sizes
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 100 g
- Pneumatic connection 2
- for 10 mm cartridge
- Pneumatic connection 4
- for 10 mm cartridge
- Note on materials
- RoHS compliant
- Material of sub-base
- PA-reinforced
