Festo
560990

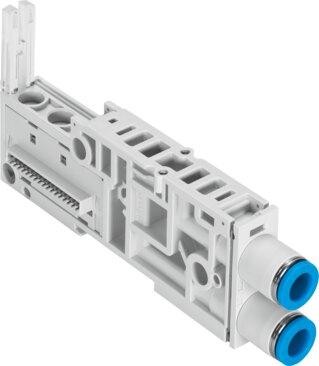

Sub-base VMPAL-AP-14-QS8-2
The Festo industrial component, part number 560990, features a valve size of 14 mm with dimensions measuring 14.9 mm in width and 107.3 mm in length, supporting a maximum of one valve position and two solenoid coils with a reversible flow direction. This unit operates within a pressure range of -0.9 bar to 10 bar and a pilot pressure of 3 bar to 8 bar using compressed air meeting ISO 8573-1:2010 [7:4:4], with oil lubrication permitted and required for continued operation. Constructed with a corrosion resistance class of 3 for high corrosion stress, the 59.25 g component includes pneumatic connections 2 and 4 for 8 mm outside diameter tubing, and conforms to VDMA24364-B1/B2-L LABS standards while maintaining RoHS compliance across an ambient temperature range of -5 °C to 50 °C. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560990
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560990.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 14.9 mm
- Length
- 107.3 mm
- Width dimension
- 14.9 mm
- Valve size
- 14 mm
- Max. no. of valve positions
- 1
- Flow direction
- Reversible
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 2
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 59.25 g
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Pneumatic connection 4
- for 8 mm tubing O.D.
- Note on materials
- RoHS compliant
- Material of sub-base
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560990. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
