Festo
560992

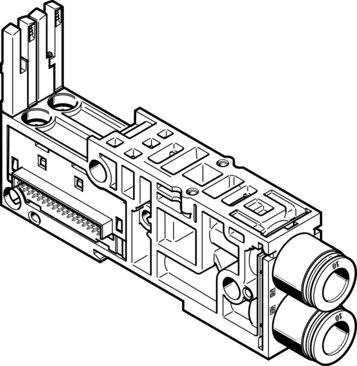

Sub-base VMPAL-AP-20-QS10-2
The Festo 560992 is an industrial component measuring 21.2 mm in width and 107.3 mm in length, featuring a 20 mm valve size with a valve manifold design that accommodates interchangeable valve sizes. Weighing 82.18 g, this part supports a maximum of 1 valve position, a reversible flow direction, and up to 2 solenoid coils while operating at pressures ranging from -0.09 MPa to 1 MPa and pilot pressures between 0.3 MPa and 0.8 MPa. It utilizes compressed air conforming to ISO 8573-1:2010 [7:4:4] with possible oil lubrication, features pneumatic connections 2 and 4 for 10 mm outside diameter tubing, and provides a corrosion resistance class of 3 alongside VDMA24364-B1/B2-L LABS conformity within ambient temperatures of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this RoHS-compliant component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560992
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560992.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 21.2 mm
- Length
- 107.3 mm
- Width dimension
- 21.2 mm
- Valve size
- 20 mm
- Max. no. of valve positions
- 1
- Flow direction
- Reversible
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 2
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 82.18 g
- Pneumatic connection 2
- for pneumatic tubing outside diameter 10 mm
- Pneumatic connection 4
- for 10 mm tubing O.D.
- Note on materials
- RoHS compliant
- Material of sub-base
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560992. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
