Festo
560997

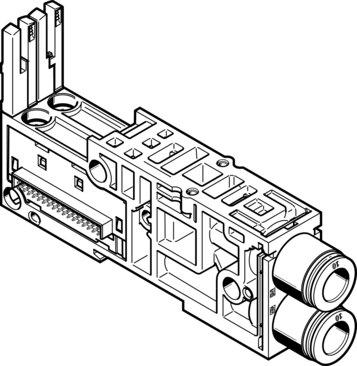

Sub-base VMPAL-AP-20-QS8-1
The Festo part number 560997 is an industrial component featuring a valve size of 20 mm, a width of 21.2 mm, and a length of 107.3 mm with a product weight of 76.78 g. It accommodates a reversible flow direction, one valve position, and one solenoid coil within an interchangeable valve manifold design. Operating pressure ranges from -0.9 bar to 10 bar, with pilot pressure between 3 bar and 8 bar, utilizing compressed air as per ISO 8573-1:2010 [7:4:4] where oil lubrication operation is possible and required for further use. Built with RoHS-compliant materials, a corrosion resistance class of 3 for high corrosion stress, and VDMA24364-B1/B2-L LABS conformity, this unit operates in ambient temperatures from -5 °C to 50 °C and includes pneumatic connections 2 and 4 for 8 mm outside diameter tubing. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560997
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560997.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 21.2 mm
- Length
- 107.3 mm
- Width dimension
- 21.2 mm
- Valve size
- 20 mm
- Max. no. of valve positions
- 1
- Flow direction
- Reversible
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 1
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 76.78 g
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Pneumatic connection 4
- for 8 mm tubing O.D.
- Note on materials
- RoHS compliant
- Material of sub-base
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560997. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
