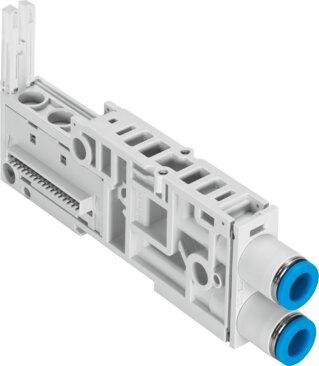

Reference imageConfirm configuration by manufacturer part number.
Festo
561014
Sub-base VMPAL-AP-14-QS8-2-T1
The Festo industrial component, part number 561014, is a 14 mm valve featuring an interchangeable valve manifold design with duct 1 pressure zone separation, a reversible flow direction, and a capacity for one valve position and a maximum of two solenoid coils. Measuring 14.9 mm in width by 107.3 mm in length with a product weight of 59.55 g, this unit operates across a pressure range of -0.09 MPa to 1 MPa and a pilot pressure of 0.3 MPa to 0.8 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It includes pneumatic connections 2 and 4 sized for 8 mm outside diameter tubing, provides a corrosion resistance class of 3 for high corrosion stress, maintains LABS conformity to VDMA24364-B1/B2-L, and functions within an ambient temperature range of -5 °C to 50 °C with oil lubrication permitted. Submit your exact part number, quantity, and application requirements to receive a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 561014
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 561014.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 14.9 mm
- Length
- 107.3 mm
- Width dimension
- 14.9 mm
- Valve size
- 14 mm
- Pressure zone separation
- Duct 1
- Max. no. of valve positions
- 1
- Flow direction
- Reversible
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 2
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 59.55 g
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Pneumatic connection 4
- for 8 mm tubing O.D.
- Note on materials
- RoHS compliant
- Material of sub-base
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 561014. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
