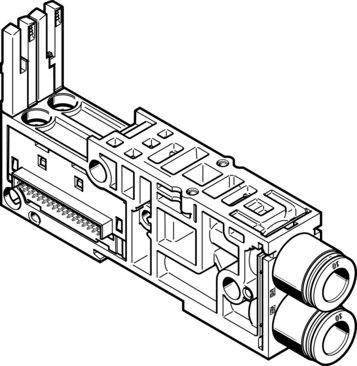

Reference imageConfirm configuration by manufacturer part number.
Festo
561015
Sub-base VMPAL-AP-20-QS10-1-T1
The Festo industrial component, part number 561015, measures 21.2 mm in width, 107.3 mm in length, and weighs 82.28 g with a 20 mm valve size. Featuring a reversible flow direction, duct 1 pressure zone separation, and accommodation for a single solenoid coil and valve position, it operates within a pressure range of -0.9 bar to 10 bar using compressed air according to ISO 8573-1:2010 [7:4:4]. Designed with a CRC of 3 for high corrosion stress and connections for 10 mm outside diameter pneumatic tubing, it functions in ambient temperatures from -5 °C to 50 °C with oil lubrication permitted. Submit your exact part number, quantity, and application requirements to request a quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 561015
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 561015.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 21.2 mm
- Length
- 107.3 mm
- Width dimension
- 21.2 mm
- Valve size
- 20 mm
- Pressure zone separation
- Duct 1
- Max. no. of valve positions
- 1
- Flow direction
- Reversible
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 1
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 82.28 g
- Pneumatic connection 2
- for pneumatic tubing outside diameter 10 mm
- Pneumatic connection 4
- for 10 mm tubing O.D.
- Note on materials
- RoHS compliant
- Material of sub-base
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 561015. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
