Festo
561016

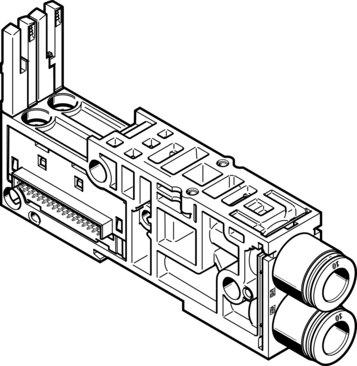

Sub-base VMPAL-AP-20-QS10-2-T1
The Festo part number 561016 is an industrial component featuring a width of 21.2 mm, a length of 107.3 mm, a valve size of 20 mm, and a product weight of 82.28 g. This unit provides a reversible flow direction, pressure zone separation for duct 1, and accommodates a maximum of one valve position and two solenoid coils within an interchangeable valve size manifold design. Operating within a pressure range of -0.9 bar to 10 bar and a pilot pressure of 3 bar to 8 bar, it utilizes compressed air matching ISO 8573-1:2010 [7:4:4] standards and includes pneumatic connections 2 and 4 sized for 10 mm outside diameter tubing. The assembly holds a corrosion resistance class of 3 for high corrosion stress, VDMA24364-B1/B2-L LABS conformity, an ambient temperature rating of -5 °C to 50 °C, and permits operation with oil lubrication. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 561016
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 561016.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 21.2 mm
- Length
- 107.3 mm
- Width dimension
- 21.2 mm
- Valve size
- 20 mm
- Pressure zone separation
- Duct 1
- Max. no. of valve positions
- 1
- Flow direction
- Reversible
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 2
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 82.28 g
- Pneumatic connection 2
- for pneumatic tubing outside diameter 10 mm
- Pneumatic connection 4
- for 10 mm tubing O.D.
- Note on materials
- RoHS compliant
- Material of sub-base
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 561016. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
