Festo
561021

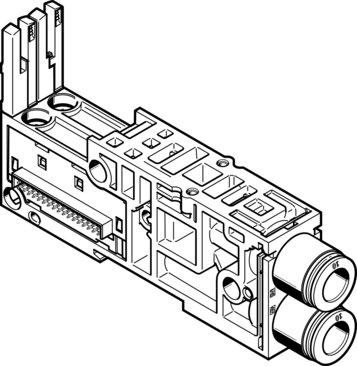

Sub-base VMPAL-AP-20-QS8-1-T1
The Festo part number 561021 is an industrial component featuring a width of 21.2 mm, a length of 107.3 mm, a valve size of 20 mm, and a product weight of 76.88 g. Designed with a reversible flow direction, duct 1 pressure zone separation, and accommodation for one solenoid coil, this unit supports a maximum of one valve position within an interchangeable valve size manifold design. It operates within a pressure range of -0.9 bar to 10 bar and a pilot pressure of 3 bar to 8 bar using compressed air according to ISO 8573-1:2010 [7:4:4], allowing for oil lubrication operation with 8 mm outside diameter pneumatic tubing connections 2 and 4. Built with a corrosion resistance class of 3 and VDMA24364-B1/B2-L LABS conformity, the component functions at ambient temperatures from -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 561021
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 561021.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 21.2 mm
- Length
- 107.3 mm
- Width dimension
- 21.2 mm
- Valve size
- 20 mm
- Pressure zone separation
- Duct 1
- Max. no. of valve positions
- 1
- Flow direction
- Reversible
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 1
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 76.88 g
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Pneumatic connection 4
- for 8 mm tubing O.D.
- Note on materials
- RoHS compliant
- Material of sub-base
- PA-reinforced
