561025

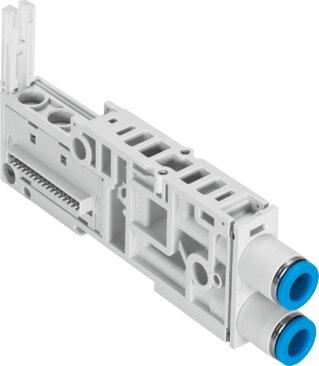

Name: Festo 561025 Sub-base VMPAL-AP-14-QS5/16"-1-T1
Brand: Festo

Sub-base VMPAL-AP-14-QS5/16"-1-T1

The Festo 561025 is an industrial component featuring a 14 mm valve size, a width of 14.9 mm, and a length of 107.3 mm with a product weight of 59.55 g. Designed with interchangeable valve sizes and a reversible flow direction, it operates at pressures ranging from -0.9 bar to 10 bar utilizing compressed air as per ISO 8573-1:2010 [7:4:4]. This unit includes pneumatic connections 2 and 4 for tubing outer Ø 5/16", features a corrosion resistance class (CRC) of 3 for high corrosion stress, and functions within an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 561025
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 561025.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 14.9 mm
Length: 107.3 mm
Width dimension: 14.9 mm
Valve size: 14 mm
Pressure zone separation: Duct 1
Max. no. of valve positions: 1
Flow direction: Reversible
Valve manifold design: Interchangeable valve sizes
Max. no. of solenoid coils: 1
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Pilot pressure MPa: 0.3 MPa...0.8 MPa
Pilot pressure: 3 bar...8 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 3 - High corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -5 °C...50 °C
Product weight: 59.55 g
Pneumatic connection 2: for pneumatic tubing outside diameter 5/16"
Pneumatic connection 4: For tubing outer Ø 5/16"
Note on materials: RoHS compliant
Material of sub-base: PA-reinforced

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 561025. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
