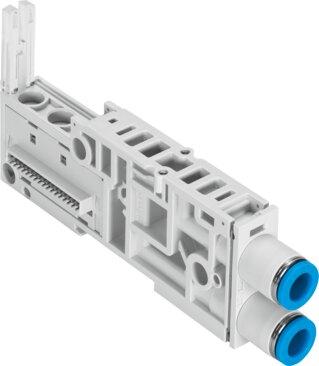

Name: Festo 561026 Sub-base VMPAL-AP-14-QS5/16"-2-T1
Brand: Festo

Sub-base VMPAL-AP-14-QS5/16"-2-T1

The Festo 561026 is an industrial component featuring a valve size of 14 mm, an overall width of 14.9 mm, a length of 107.3 mm, and a product weight of 59.55 g. Designed with a reversible flow direction, pressure zone separation for duct 1, and an interchangeable valve manifold design, this unit supports a maximum of 1 valve position and up to 2 solenoid coils. It operates within a pressure range of -0.09 MPa to 1 MPa and a pilot pressure of 0.3 MPa to 0.8 MPa utilizing compressed air conforming to ISO 8573-1:2010 [7:4:4], with oil lubrication operation possible. The component exhibits a corrosion resistance class of 3 for high corrosion stress, VDMA24364-B1/B2-L LABS conformity, and an ambient temperature range of -5 °C to 50 °C, utilizing 5/16" outer diameter pneumatic tubing connections for ports 2 and 4. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 561026
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 561026.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 14.9 mm
Length: 107.3 mm
Width dimension: 14.9 mm
Valve size: 14 mm
Pressure zone separation: Duct 1
Max. no. of valve positions: 1
Flow direction: Reversible
Valve manifold design: Interchangeable valve sizes
Max. no. of solenoid coils: 2
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Pilot pressure MPa: 0.3 MPa...0.8 MPa
Pilot pressure: 3 bar...8 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 3 - High corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -5 °C...50 °C
Product weight: 59.55 g
Pneumatic connection 2: for pneumatic tubing outside diameter 5/16"
Pneumatic connection 4: For tubing outer Ø 5/16"
Note on materials: RoHS compliant
Material of sub-base: PA-reinforced

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 561026. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
