561028

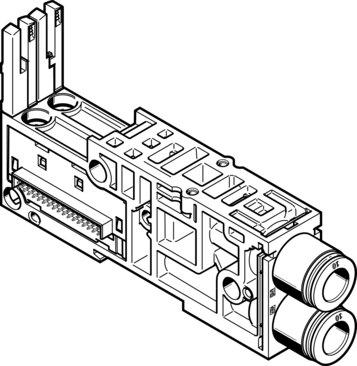

Name: Festo 561028 Sub-base VMPAL-AP-20-QS3/8"-2-T1
Brand: Festo

Sub-base VMPAL-AP-20-QS3/8"-2-T1

The Festo part number 561028 is an industrial component featuring a width of 21.2 mm, a length of 107.3 mm, a valve size of 20 mm, and a product weight of 82.28 g. This reversible unit accommodates pressure zone separation for duct 1, supports a maximum of one valve position and two solenoid coils, and operates within a pressure range of -0.9 bar to 10 bar utilizing compressed air conforming to ISO 8573-1:2010 [7:4:4]. It is engineered with a corrosion resistance class of 3 for high corrosion stress, VDMA24364-B1/B2-L LABS conformity, an ambient temperature range of -5 °C to 50 °C, and 3/8-inch pneumatic connections for tubing outside diameter 2 and 4. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 561028
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 561028.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 21.2 mm
Length: 107.3 mm
Width dimension: 21.2 mm
Valve size: 20 mm
Pressure zone separation: Duct 1
Max. no. of valve positions: 1
Flow direction: Reversible
Valve manifold design: Interchangeable valve sizes
Max. no. of solenoid coils: 2
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Pilot pressure MPa: 0.3 MPa...0.8 MPa
Pilot pressure: 3 bar...8 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 3 - High corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -5 °C...50 °C
Product weight: 82.28 g
Pneumatic connection 2: for pneumatic tubing outside diameter 3/8"
Pneumatic connection 4: For tubing outer Ø 3/8"
Note on materials: RoHS compliant
Material of sub-base: PA-reinforced

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 561028. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
