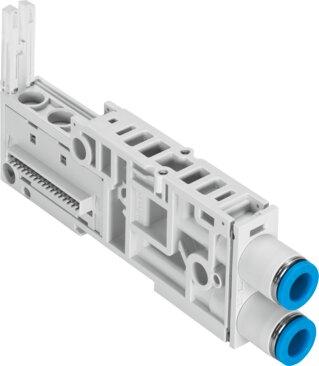

Reference imageConfirm configuration by manufacturer part number.
Festo
561031
Sub-base VMPAL-AP-14-QS1/4"-1-T1
The Festo 561031 is an industrial component measuring 14.9 mm in width and 107.3 mm in length with a 14 mm valve size, designed for a maximum of 1 valve position and 1 solenoid coil. This unit features reversible flow direction, interchangeable valve sizes for the valve manifold design, and duct 1 pressure zone separation alongside 1/4" pneumatic connections for outer diameter tubing at connections 2 and 4. It operates within a pressure range of -0.09 MPa to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4] at pilot pressures from 0.3 MPa to 0.8 MPa, supporting oil lubrication and featuring a Class 3 high corrosion stress resistance rating within an ambient temperature range of -5 °C to 50 °C. Weighing 51.35 g and complying with VDMA24364-B1/B2-L LABS conformity, please submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 561031
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 561031.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 14.9 mm
- Length
- 107.3 mm
- Width dimension
- 14.9 mm
- Valve size
- 14 mm
- Pressure zone separation
- Duct 1
- Max. no. of valve positions
- 1
- Flow direction
- Reversible
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 1
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 51.35 g
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Pneumatic connection 4
- For tubing outer Ø 1/4"
- Note on materials
- RoHS compliant
- Material of sub-base
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 561031. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
