Festo
561032

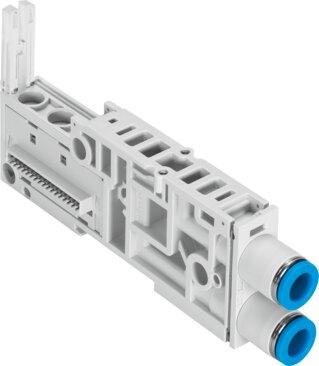

Sub-base VMPAL-AP-14-QS1/4"-2-T1
Engineered by Festo with part number 561032, this industrial component features a 14 mm valve size, a width of 14.9 mm, a length of 107.3 mm, and a product weight of 51.35 g. The unit supports an operating pressure range of -0.09 MPa to 1 MPa, a pilot pressure range of 0.3 MPa to 0.8 MPa, and accommodates compressed air operating media according to ISO 8573-1:2010 [7:4:4] with reversible flow direction. Built with a corrosion resistance class of 3 for high corrosion stress and LABS conformity under VDMA24364-B1/B2-L, it operates within an ambient temperature range of -5 °C to 50 °C and includes 1/4" pneumatic connections for tubing outer diameters on ports 2 and 4. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 561032
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 561032.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 14.9 mm
- Length
- 107.3 mm
- Width dimension
- 14.9 mm
- Valve size
- 14 mm
- Pressure zone separation
- Duct 1
- Max. no. of valve positions
- 1
- Flow direction
- Reversible
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 2
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 51.35 g
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Pneumatic connection 4
- For tubing outer Ø 1/4"
- Note on materials
- RoHS compliant
- Material of sub-base
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 561032. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
