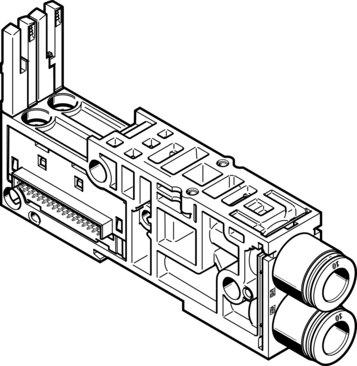

Reference imageConfirm configuration by manufacturer part number.
Festo
561033
Sub-base VMPAL-AP-20-QS5/16"-1-T1
The Festo part number 561033 is an industrial component featuring a valve size of 20 mm, a width of 21.2 mm, a length of 107.3 mm, and a product weight of 76.88 g. Designed with a reversible flow direction, interchangeable valve sizes, duct 1 pressure zone separation, and one valve position accommodating a single solenoid coil, it operates between -0.9 bar and 10 bar with a pilot pressure of 3 bar to 8 bar. This unit is built for compressed air per ISO 8573-1:2010 [7:4:4] with oil lubrication possible, offering a corrosion resistance class of 3 for high corrosion stress, VDMA24364-B1/B2-L LABS conformity, an ambient temperature range of -5 °C to 50 °C, and pneumatic connections 2 and 4 for 5/16" outer diameter tubing. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 561033
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 561033.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 21.2 mm
- Length
- 107.3 mm
- Width dimension
- 21.2 mm
- Valve size
- 20 mm
- Pressure zone separation
- Duct 1
- Max. no. of valve positions
- 1
- Flow direction
- Reversible
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 1
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 76.88 g
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/16"
- Pneumatic connection 4
- For tubing outer Ø 5/16"
- Note on materials
- RoHS compliant
- Material of sub-base
- PA-reinforced
