Festo
561083

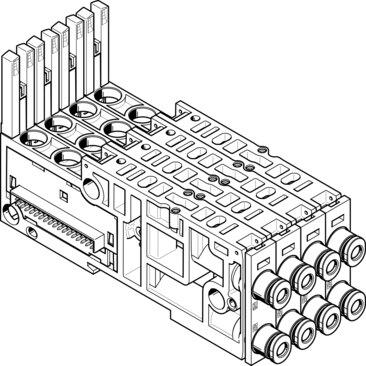

Sub-base VMPAL-AP-4X10-QS6-1
The Festo part number 561083 is an industrial component featuring a 10 mm valve size, a width of 42.8 mm, a length of 107.3 mm, a width dimension of 10.7 mm, and a product weight of 110 g. This valve manifold design incorporates interchangeable valve sizes supporting a maximum of 4 valve positions and 4 solenoid coils with a reversible flow direction. Operating within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), it utilizes compressed air as per ISO 8573-1:2010 [7:4:4] with oil lubrication possible and required for further use. The unit is rated for an ambient temperature of -5 °C to 50 °C, features a corrosion resistance class of CRC 3 for high corrosion stress, complies with VDMA24364-B1/B2-L LABS conformity, includes RoHS-compliant materials, and provides pneumatic connections 2 and 4 for 6 mm outside diameter pneumatic tubing. Please submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 561083
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 561083.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 42.8 mm
- Length
- 107.3 mm
- Width dimension
- 10.7 mm
- Valve size
- 10 mm
- Max. no. of valve positions
- 4
- Flow direction
- Reversible
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 4
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 110 g
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Pneumatic connection 4
- for 6 mm tubing O.D.
- Note on materials
- RoHS compliant
- Material of sub-base
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 561083. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
