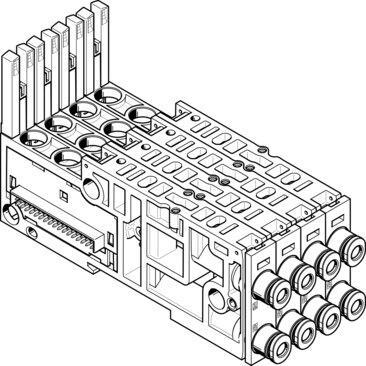

Reference imageConfirm configuration by manufacturer part number.
Festo
561089
Sub-base VMPAL-AP-4X10-QS4-1
The Festo 561089 is a 110 g industrial component featuring a valve size of 10 mm, a width of 42.8 mm, a length of 107.3 mm, and a width dimension of 10.7 mm with a maximum of 4 valve positions and 4 solenoid coils. This unit supports a reversible flow direction, an operating pressure ranging from -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), pneumatic connections 2 and 4 for 4 mm outside diameter tubing, and an ambient temperature range of -5 °C to 50 °C. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] with oil lubrication possible, it possesses a CRC of 3 for high corrosion stress, VDMA24364-B1/B2-L LABS conformity, RoHS compliant materials, and an interchangeable valve size manifold design. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 561089
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 561089.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 42.8 mm
- Length
- 107.3 mm
- Width dimension
- 10.7 mm
- Valve size
- 10 mm
- Max. no. of valve positions
- 4
- Flow direction
- Reversible
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 4
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 110 g
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Pneumatic connection 4
- for 4 mm tubing O.D.
- Note on materials
- RoHS compliant
- Material of sub-base
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 561089. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
