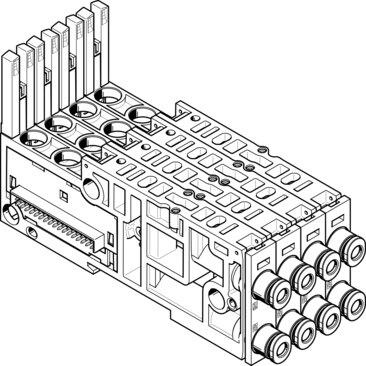

Name: Festo 561090 Sub-base VMPAL-AP-4X10-QS4-2
Brand: Festo

Sub-base VMPAL-AP-4X10-QS4-2

The Festo part number 561090 is an industrial component featuring a valve size of 10 mm, a width of 42.8 mm, a length of 107.3 mm, a width dimension of 10.7 mm, and a product weight of 110 g. This model accommodates a maximum of 4 valve positions and up to 8 solenoid coils with a reversible flow direction and interchangeable valve sizes. It operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) using compressed air as per ISO 8573-1:2010 [7:4:4] at ambient temperatures from -5 °C to 50 °C, supporting pneumatic tubing outside diameters of 4 mm for connections 2 and 4. Featuring RoHS compliance, a CRC rating of 3 for high corrosion stress, LABS conformity under VDMA24364-B1/B2-L, and compatibility with oil-lubricated operation, please submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 561090
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 561090.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 42.8 mm
Length: 107.3 mm
Width dimension: 10.7 mm
Valve size: 10 mm
Max. no. of valve positions: 4
Flow direction: Reversible
Valve manifold design: Interchangeable valve sizes
Max. no. of solenoid coils: 8
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Pilot pressure MPa: 0.3 MPa...0.8 MPa
Pilot pressure: 3 bar...8 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 3 - High corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -5 °C...50 °C
Product weight: 110 g
Pneumatic connection 2: for pneumatic tubing outside diameter 4 mm
Pneumatic connection 4: for 4 mm tubing O.D.
Note on materials: RoHS compliant
Material of sub-base: PA-reinforced

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 561090. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
