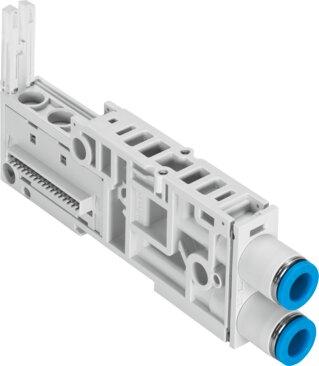

Reference imageConfirm configuration by manufacturer part number.
Festo
561091
Sub-base VMPAL-AP-4X14-QS6-1
The Festo part number 561091 is an industrial component featuring a 14 mm valve size, a valve manifold design with interchangeable valve sizes, and a maximum of four valve positions and four solenoid coils. This reversible flow unit measures 59.6 mm in width, 107.3 mm in length, has a width dimension of 14.9 mm, and weighs 130.8 g. Operating across a pressure range of -0.9 bar to 10 bar (-0.09 MPa to 1 MPa) and a pilot pressure of 3 bar to 8 bar (0.3 MPa to 0.8 MPa), it accommodates compressed air per ISO 8573-1:2010 [7:4:4] with oil lubrication possible and required for further use. The RoHS-compliant assembly incorporates pneumatic connections 2 and 4 for 6 mm outside diameter tubing, provides a corrosion resistance class of 3 for high corrosion stress, maintains LABS conformity to VDMA24364-B1/B2-L, and functions within an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 561091
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 561091.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 59.6 mm
- Length
- 107.3 mm
- Width dimension
- 14.9 mm
- Valve size
- 14 mm
- Max. no. of valve positions
- 4
- Flow direction
- Reversible
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 4
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 130.8 g
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Pneumatic connection 4
- for 6 mm tubing O.D.
- Note on materials
- RoHS compliant
- Material of sub-base
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 561091. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
