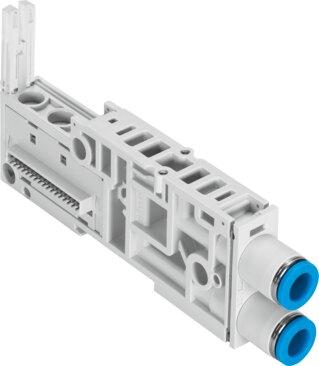

Reference imageConfirm configuration by manufacturer part number.
Festo
561092
Sub-base VMPAL-AP-4X14-QS6-2
The Festo 561092 industrial component features a 14 mm valve size, a 59.6 mm width, a 107.3 mm length, and a 14.9 mm width dimension with a product weight of 130.8 g. Designed with a reversible flow direction and an interchangeable valve size manifold design, this unit accommodates a maximum of 4 valve positions and 8 solenoid coils while operating at pressures ranging from -0.09 MPa to 1 MPa and a pilot pressure of 0.3 MPa to 0.8 MPa. It utilizes compressed air according to ISO 8573-1:2010 [7:4:4] for operating and pilot media with oil lubrication possible, and includes pneumatic connections 2 and 4 for 6 mm outside diameter tubing. The part achieves a corrosion resistance class of 3 for high corrosion stress, VDMA24364-B1/B2-L LABS conformity, RoHS compliant materials, and an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 561092
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 561092.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 59.6 mm
- Length
- 107.3 mm
- Width dimension
- 14.9 mm
- Valve size
- 14 mm
- Max. no. of valve positions
- 4
- Flow direction
- Reversible
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 8
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 130.8 g
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Pneumatic connection 4
- for 6 mm tubing O.D.
- Note on materials
- RoHS compliant
- Material of sub-base
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 561092. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
