Festo
561102

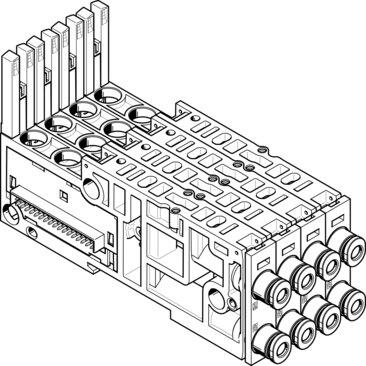

Sub-base VMPAL-AP-4X10-QS5/32"-2
This Festo industrial component, part number 561102, features a valve size of 10 mm, a width of 42.8 mm, a length of 107.3 mm, a width dimension of 10.7 mm, and a product weight of 110 g. The interchangeable valve manifold design supports a maximum of 4 valve positions and up to 8 solenoid coils with a reversible flow direction, operating under pressures from -0.09 MPa to 1 MPa and pilot pressures from 0.3 MPa to 0.8 MPa using compressed air per ISO 8573-1:2010 [7:4:4]. Constructed with RoHS-compliant materials and a corrosion resistance class of CRC 3 for high corrosion stress, the unit accommodates ambient temperatures between -5 °C and 50 °C via 5/32" outer diameter pneumatic tubing connections for ports 2 and 4. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 561102
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 561102.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 42.8 mm
- Length
- 107.3 mm
- Width dimension
- 10.7 mm
- Valve size
- 10 mm
- Max. no. of valve positions
- 4
- Flow direction
- Reversible
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 8
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 110 g
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/32"
- Pneumatic connection 4
- For tubing outer Ø 5/32"
- Note on materials
- RoHS compliant
- Material of sub-base
- PA-reinforced
