Festo
561104

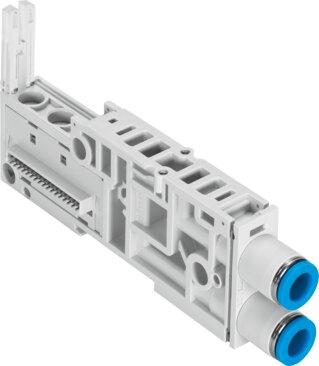

Sub-base VMPAL-AP-4X14-QS1/4"-2
The Festo part number 561104 is an industrial component measuring 59.6 mm in width, 107.3 mm in length, and 14.9 mm in width dimension with a 14 mm valve size. This valve manifold features an interchangeable valve design supporting a reversible flow direction, a maximum of 4 valve positions, and up to 8 solenoid coils. It operates at pressures ranging from -0.09 MPa to 1 MPa and a pilot pressure of 0.3 MPa to 0.8 MPa, utilizing compressed air as per ISO 8573-1:2010 [7:4:4] with possible oil lubrication. Weighing 130.8 g, the unit includes pneumatic connections 2 and 4 for 1/4" outer diameter tubing, exhibits a corrosion resistance class of 3 for high corrosion stress, maintains LABS conformity to VDMA24364-B1/B2-L, and functions within ambient temperatures from -5 °C to 50 °C with RoHS compliant materials. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 561104
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 561104.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 59.6 mm
- Length
- 107.3 mm
- Width dimension
- 14.9 mm
- Valve size
- 14 mm
- Max. no. of valve positions
- 4
- Flow direction
- Reversible
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 8
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 130.8 g
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Pneumatic connection 4
- For tubing outer Ø 1/4"
- Note on materials
- RoHS compliant
- Material of sub-base
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 561104. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
