Festo
561361

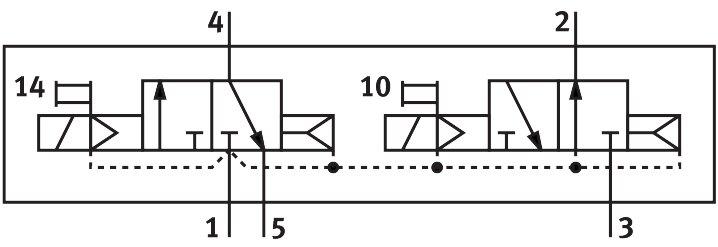

Air solenoid valve VSVA-B-T32H-AD-D1-1R5L
The Festo part number 561361 is an electrical industrial component featuring a 2x3/2 open/closed monostable valve function and a piston gate valve structural design with a soft sealing principle. It delivers a normal nominal flow rate of 1100 l/min at an operating pressure ranging from 0.3 MPa to 1 MPa (3 bar to 10 bar) using 24V DC operating voltage, a nominal width of 11 mm, and a width dimension of 43 mm (42 mm width). Conforming to ISO 5599-1 with IP65 and NEMA 4 degree of protection, it includes internal pilot air supply, pneumatic spring reset, adjustable exhaust air function, and c UL us (OL) certification. Please submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 561361
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 561361.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2, open/closed, monostable
- Actuation type
- Electrical
- Width
- 42 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1100 l/min
- Pneumatic working port
- Sub-base, size 1 according to ISO 5599-1 | G1/4
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 11 mm
- Width dimension
- 43 mm
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- LED
- Flow rate of pneumatic valve
- 1600 l/min
- Flow rate of pneumatic valve on individual sub-base
- 1200 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 1100 l/min
- Switching time off
- 38 ms
