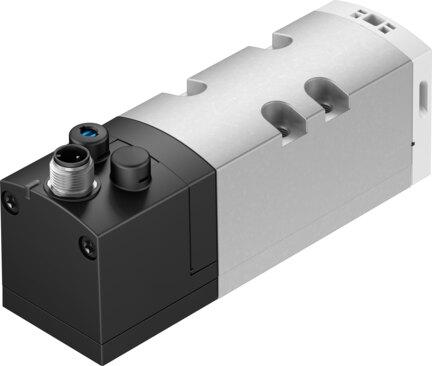

Reference imageConfirm configuration by manufacturer part number.
Festo
561363
Air solenoid valve VSVA-B-M52-MD-D1-1R5L
The Festo 561363 is an electrical 5/2-way monostable industrial component featuring a piston gate valve structural design, soft sealing principle, and internal pilot air supply port with a nominal width of 11 mm and a width of 42 mm. Operating on 24V DC within an operating pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar), this c UL us-recognized (OL) part delivers a normal nominal flow rate of 1300 l/min conforming to ISO 5599-1 with IP65 and NEMA 4 degree of protection. It includes a mechanical spring reset method, adjustable exhaust air function via throttle plate or individual sub-base, sub-base size 1 pneumatic working ports, and both detenting and non-detenting manual override options for installation in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 561363
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 561363.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 42 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1300 l/min
- Pneumatic working port
- Sub-base, size 1 according to ISO 5599-1 | G1/4
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 11 mm
- Width dimension
- 43 mm
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- LED
- Flow rate of pneumatic valve
- 2000 l/min
- Flow rate of pneumatic valve on individual sub-base
- 1400 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 1300 l/min
- Switching time off
- 60 ms
