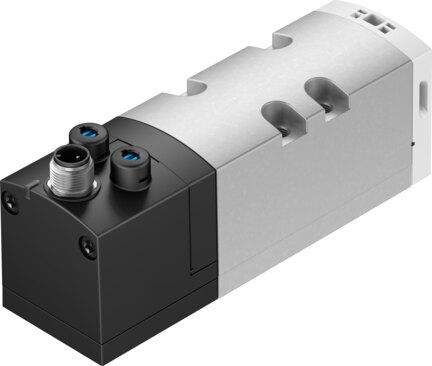

Name: Festo 561364 Air solenoid valve VSVA-B-B52-D-D1-1R5L
Brand: Festo

Air solenoid valve VSVA-B-B52-D-D1-1R5L

The Festo 561364 is a 5/2-way bistable industrial component featuring a piloted piston gate valve with soft sealing and an 11 mm nominal width. This electrical actuated unit operates on 24V DC within an operating pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar), delivering a normal nominal flow rate of 1300 l/min through ISO 5599-1 size 1 sub-base or G1/4 pneumatic working ports. Built with IP65 and NEMA 4 protection and c UL us recognition, the 42 mm wide assembly conforms to ISO 5599-1 standards and includes detenting and non-detenting manual override. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 561364
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 561364.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, bistable
Actuation type: Electrical
Width: 42 mm
Normal nominal ow rate (normalized to DIN 1343): 1300 l/min
Pneumatic working port: Sub-base, size 1 according to ISO 5599-1 | G1/4
Operating voltage: 24V DC
Operating pressure: 0.3 MPa...1 MPa | 3 bar...10 bar
Structural design: Piston gate valve
Certication: c UL us - recognized (OL)
Degree of protection: IP65 | NEMA 4
Nominal width: 11 mm
Width dimension: 43 mm
Exhaust air function: Adjustable | Via throttle plate | Via individual sub-base
Sealing principle: Soft
Mounting position: Any
Conforms to standard: ISO 5599-1
Manual override: Detenting | Non-detenting
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Lap: Positive overlap
Signal status display: LED
Flow rate of pneumatic valve: 2000 l/min
Flow rate of pneumatic valve on individual sub-base: 1400 l/min
Optimized ow rate of pneumatic valve pneumatically concatenated ow: 1300 l/min
Changeover time: 16 ms
Duty cycle: 100%

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 561364. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
