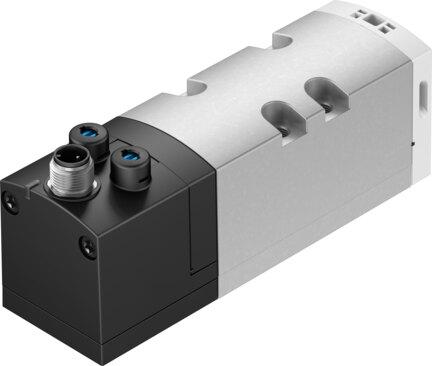

Reference imageConfirm configuration by manufacturer part number.
Festo
561365
Air solenoid valve VSVA-B-D52-D-D1-1R5L
The Festo 561365 is an electrically actuated 5/2-way dominant, bistable piston gate valve featuring a soft sealing principle and a nominal width of 11 mm. This piloted industrial component operates within a pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar) at 24V DC, delivering a normal nominal flow rate of 1300 l/min through ISO 5599-1 size 1 sub-base or G1/4 pneumatic working ports. Certified as c UL us - recognized (OL) with an IP65 and NEMA 4 degree of protection, the 42 mm wide unit includes detenting and non-detenting manual override with adjustable exhaust air function via a throttle plate or individual sub-base. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 561365
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 561365.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, dominant, bistable
- Actuation type
- Electrical
- Width
- 42 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1300 l/min
- Pneumatic working port
- Sub-base, size 1 according to ISO 5599-1 | G1/4
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 11 mm
- Width dimension
- 43 mm
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- LED
- Flow rate of pneumatic valve
- 2000 l/min
- Flow rate of pneumatic valve on individual sub-base
- 1400 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 1300 l/min
- Changeover time
- 19 ms
- Duty cycle
- 100%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 561365. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
