Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
561602

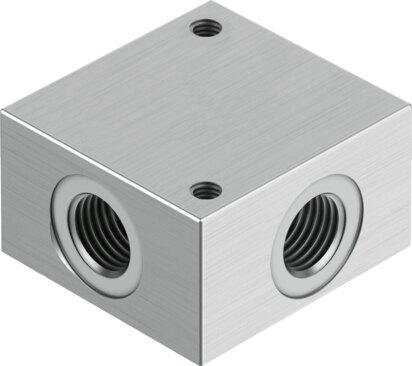

Distributor FR-4-3/8
The Festo part number 561602 is an industrial component featuring a nominal width of 16 mm, one supply line, and three outlets with G3/8 pneumatic connections. Constructed from anodized wrought aluminum alloy, the housing provides a corrosion resistance class of CRC 2 and VDMA24364-B1/B2-L LABS conformity. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] across an operating pressure range of 0 bar to 16 bar and an ambient temperature range of -10 °C to 60 °C in any mounting position, allowing for oil lubrication. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 561602
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 561602.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 16 mm
- Mounting position
- Any
- Operating pressure for entire temperature range
- 0 bar...16 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- No. of outlets
- 3
- No. of supply lines
- 1
- Pneumatic connection 1
- G3/8
- Pneumatic connection 2
- G3/8
- Housing material
- Wrought aluminum alloy | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 561602. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
