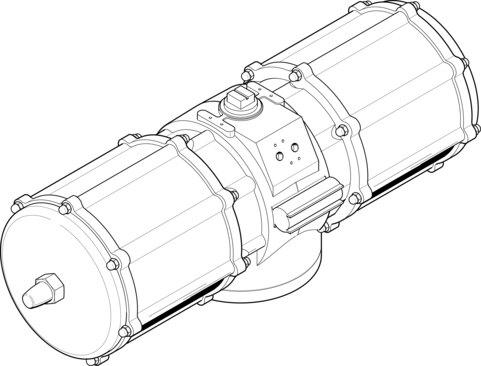

Name: Festo 561695 Quarter turn actuator DAPS-4000-090-RS3-F25
Brand: Festo

Quarter turn actuator DAPS-4000-090-RS3-F25

The Festo part number 561695 is a single-acting industrial component featuring a size 4000 valve actuator with an F25 flange hole pattern and a kinematic yoke system structural design. It operates with a 90-degree swivel angle, an end-position adjusting range of -5 to 5 degrees at 0 degrees, and an end-position adjusting range of 85 to 95 degrees at the nominal swivel angle, closing to the right with no cushioning or position sensing. The unit functions with an operating pressure of 0.42 MPa to 0.84 MPa, a nominal operating pressure of 0.56 MPa, a connection pressure for spring force of 0.42 MPa, and achieves a maximum swivel frequency of 1 Hz at 6 bar while providing safety integrity level up to SIL 2 low demand mode and CE marking as per the EU explosion protection directive (ATEX). Submit the exact part number, quantity, and application requirements to request a formal quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 561695
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 561695.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 4000
Flange hole pattern: F25
Swivel angle: 90 deg
End-position adjusting range at 0°: -5 deg...5 deg
End-position adjusting range at nominal swivel angle: 85 deg...95 deg
Depth shaft connection: 58 mm
Standard connection for valve: ISO 5211
Cushioning: No cushioning
Mounting position: Any
Mode of operation: Single-acting
Structural design: Kinematic yoke system
Position sensing: None
Closing direction: Closes to the right
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Safety integrity level (SIL): Up to SIL 2 low demand mode
Connection pressure for spring force: 0.42 MPa | 4.2 bar
Operating pressure: 0.42 MPa...0.84 MPa | 4.2 bar...8.4 bar
Nominal operating pressure: 0.56 MPa | 5.6 bar
Max. swivel frequency at 6 bar: 1 Hz
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Certicate issuing authority: German Technical Control Board North (TÜV Nord) 212170801
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T6...T3 Gb X
Type of (ignition) protection for dust: Ex h IIIC T85°C...T200°C Db X
