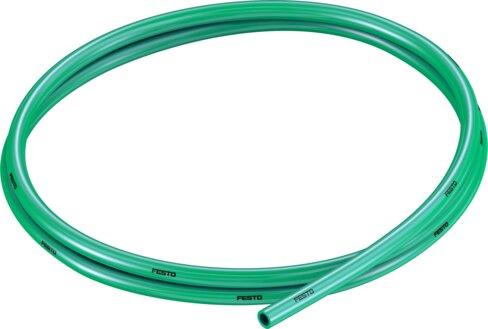

Name: Festo 561706 Plastic tubing PUN-V0-6X2-GN-C
Brand: Festo

Plastic tubing PUN-V0-6X2-GN-C

The Festo 561706 is an industrial component featuring a 6 mm outside diameter, a 2 mm inside diameter, and a green flame-protection color that deviates from standard configurations. This tubing provides an operating pressure of -0.095 MPa to 1.6 MPa across its full temperature range, a minimum bending radius of 7 mm, and suitability for energy chains with a bending radius relevant for flow rate of 24 mm. Certified by TÜV under certificate B 013277 0527 00, it operates with compressed air as per ISO 8573-1:2010 [7:-:-] or liquid water within an ambient temperature range of -35 °C to 60 °C. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 561706
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 561706.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Outside diameter: 6 mm
Bending radius relevant for ow rate: 24 mm
Inside diameter: 2 mm
Min. bending radius: 7 mm
Tubing characteristics: Suitable for energy chains
Operating pressure for entire temperature range: -0.095 MPa...1.6 MPa | -0.95 bar...16 bar | -13.775 psi...232 psi
Temperature-dependent operating pressure: -0.095 MPa...3 MPa | -0.95 bar...30 bar | -13.775 psi...435 psi
Information on operating pressure: For applications with weld spatter: max. 1 MPa at 20 °C, max. 0.9 MPa at | 40 °C, max. 0.7 MPa at 60 °C | Water: max. 0.6 MPa at max. 50 °C
Certication: TÜV
Certicate issuing authority: B 013277 0527 00
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Material re test: UL94 V-0 (3mm) | UL94 V-2 (0.75mm)
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -35 °C...60 °C
Note on ambient temperature: unpressurized use up to 90°C
Product weight by length: 0.032 kg/m
Pneumatic connection: For plug connection outside diameter 6 mm | For barbed tting, inside diameter 2 mm
Color: Green
Information on color: Deviates from the standard color due to ame protection
Shore hardness: D 54 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 561706. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
