561708

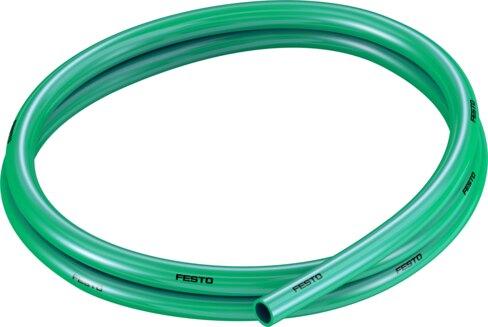

Name: Festo 561708 Plastic tubing PUN-V0-10X2-GN-C
Brand: Festo

Plastic tubing PUN-V0-10X2-GN-C

The Festo 561708 is an industrial component featuring a 10 mm outside diameter, 6 mm inside diameter, and a Shore hardness of D 54 +/-3 in a green flame-protection color. This tubing is suitable for energy chains, operates across a temperature-dependent pressure range of -0.095 MPa to 1.6 MPa, and accepts compressed air or liquid water. It carries TÜV certification under certificate B 013277 0527 00 with UL94 V-0 and V-2 material fire test ratings. Submit the exact part number, quantity, and application requirements to receive an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 561708
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 561708.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Outside diameter: 10 mm
Bending radius relevant for ow rate: 42 mm
Inside diameter: 6 mm
Min. bending radius: 12 mm
Tubing characteristics: Suitable for energy chains
Operating pressure for entire temperature range: -0.095 MPa...0.9 MPa | -0.95 bar...9 bar | -13.775 psi...130.5 psi
Temperature-dependent operating pressure: -0.095 MPa...1.6 MPa | -0.95 bar...16 bar | -13.775 psi...232 psi
Information on operating pressure: For applications with weld spatter: max. 1 MPa at 20 °C, max. 0.9 MPa at | 40 °C, max. 0.7 MPa at 60 °C | Water: max. 0.6 MPa at max. 50 °C
Certication: TÜV
Certicate issuing authority: B 013277 0527 00
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Material re test: UL94 V-0 (3mm) | UL94 V-2 (0.75mm)
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -35 °C...60 °C
Note on ambient temperature: unpressurized use up to 90°C
Product weight by length: 0.064 kg/m
Pneumatic connection: For plug connection outside diameter 10 mm | For barbed tting, inside diameter 6 mm
Color: Green
Information on color: Deviates from the standard color due to ame protection
Shore hardness: D 54 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 561708. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
