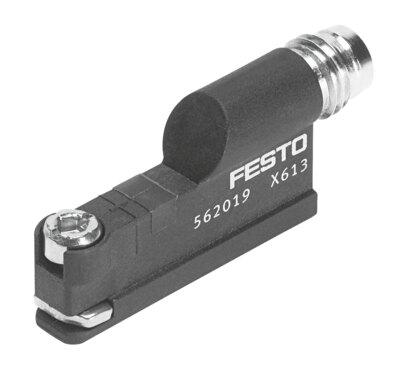

Reference imageConfirm configuration by manufacturer part number.
Festo
562019
Proximity sensor SMT-8-SL-PS-LED-24-B
The Festo 562019 is a magneto-resistive industrial component designed for T-slots to measure position based on the EN 60947-5-2 norm. It features a PNP switching output with a normally open contact, a max switching frequency of 140 Hz, a max output current of 100 mA, and operates within an ambient temperature range of -20 °C to 70 °C. The unit carries RCM and c UL us-Listed certifications, holds a UL E232949 certificate, and complies with EU and UK EMC and RoHS directives as detailed in the manufacturer application note. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562019
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562019.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- For T-slot
- Based on norm
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Certicate issuing authority
- UL E232949
- Note on materials
- RoHS compliant
- Application note
- https://www.festo.com/Drive-Sensor-Overview
- Measured variable
- Position
- Measuring principle
- Magneto-resistive
- Ambient temperature
- -20 °C...70 °C
- Repetition accuracy
- 0.2 mm
- Switching output
- PNP
- Switching element function
- N.O. contact
- On time
- 1 ms
- Switch-off time
- 2 ms...6 ms
- Max. switching frequency
- 140 Hz
- Max. output current
- 100 mA
- Max. switching capacity DC
- 3 W
- Voltage drop
- 2 V
- Inductive protective circuit
- Adapted to MZ, MY and ME coils
- Minimum load current
- 0.1 mA
- Residual current
- 2 µA
- Short-circuit protection
- Yes
- Overload protection
- Yes
- Rated operating voltage DC
- 24 V
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- 10%
- Reverse polarity protection
- for all electrical connections
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562019. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
