Festo
562024

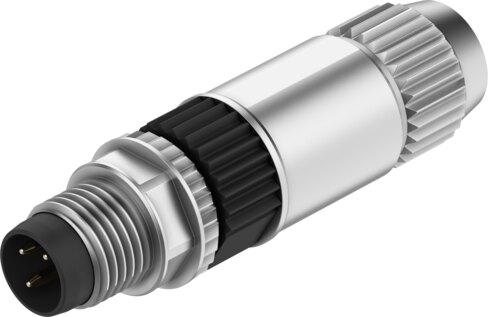

Plug NECU-S-M8G3-HX
The Festo 562024 is an industrial component featuring a 3-pin M8x1 straight plug with an insulation displacement connector complying with EN 61076-2-104 and EN 61984 standards. This c UL us-recognized part operates across a 0 V to 32 V AC/DC range with a 4 A current rating at 40°C, a 0.8 kV surge resistance, and an IP65/IP67 degree of protection. Built with a nickel-plated die-cast zinc and PA housing, the 7.8 g unit accommodates approved cable diameters from 2.5 mm to 5.1 mm and connection cross sections from 0.14 mm² to 0.34 mm² within an ambient temperature range of -25°C to 85°C. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562024
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562024.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-104 | EN 61984
- Certication
- c UL us - recognized (OL)
- Contact durability
- 3
- Product weight
- 7.8 g
- Electrical connection
- 3-pin | M8x1 | Straight plug/insulation displacement connector
- DC operating voltage range
- 0 V...32 V
- Operating voltage range AC
- 0 V...32 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 0.8 kV
- Approved cable diameter
- 2.5 mm...5.1 mm
- Individual wire diameter
- 0.1 mm
- Wire diameter
- 0.9 mm...1.6 mm
- Connection cross section
- 0.14 mm²...0.34 mm²
- Degree of protection
- IP65 | IP67
- Ambient temperature
- -25 °C...85 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Contamination level
- 3
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- PA | Die-cast zinc | Nickel-plated
- Material of screw-type lock
- Brass, nickel-plated
- Seals material
- FPM | PUR
- Material of pin contacts
- Gold-plated
- Permissible insulating sheath
- PP | PVC | TPE-E
