Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

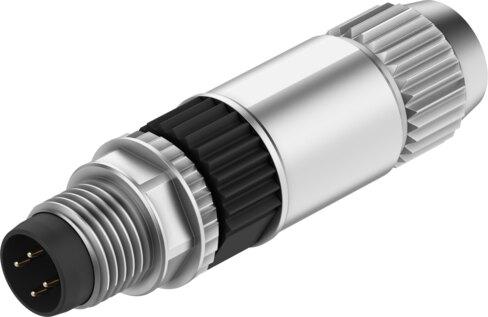

Reference imageConfirm configuration by manufacturer part number.
Festo
562025
Plug NECU-S-M8G4-HX
The Festo 562025 is an industrial component featuring a 4-pin M8x1 straight plug with an insulation displacement connector complying with EN 61076-2-104 and EN 61984 standards. This c UL us-recognized part operates within a 0 V to 32 V AC and DC range, delivers a 4 A current rating at 40° C, and provides IP65 and IP67 degrees of protection across an ambient temperature range of -25 °C to 85 °C. Constructed with a PA and nickel-plated die-cast zinc housing measuring 7.8 g, the unit supports a 0.14 mm² to 0.34 mm² connection cross section for cable diameters between 2.5 mm and 5.1 mm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562025
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562025.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-104 | EN 61984
- Certication
- c UL us - recognized (OL)
- Contact durability
- 3
- Product weight
- 7.8 g
- Electrical connection
- 4-pin | M8x1 | Straight plug/insulation displacement connector
- DC operating voltage range
- 0 V...32 V
- Operating voltage range AC
- 0 V...32 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 0.8 kV
- Approved cable diameter
- 2.5 mm...5.1 mm
- Individual wire diameter
- 0.1 mm
- Wire diameter
- 0.9 mm...1.6 mm
- Connection cross section
- 0.14 mm²...0.34 mm²
- Degree of protection
- IP65 | IP67
- Ambient temperature
- -25 °C...85 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Contamination level
- 3
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- PA | Die-cast zinc | Nickel-plated
- Material of screw-type lock
- Brass, nickel-plated
- Seals material
- FPM | PUR
- Material of pin contacts
- Gold-plated
- Permissible insulating sheath
- PP | PVC | TPE-E
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562025. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
