Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

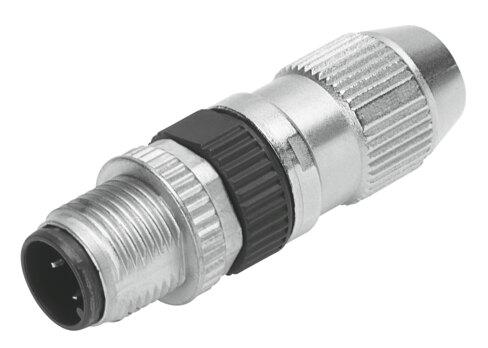

Reference imageConfirm configuration by manufacturer part number.
Festo
562028
Plug NECU-S-M12G4-HX
The Festo 562028 industrial component is a 4-pin, A-coded M12x1 straight plug featuring an insulation displacement connector with a connection cross section of 0.14 mm² to 0.34 mm² and a product weight of 17.5 g. Built to EN 61076-2-101 and EN 61984 norms, this c UL us-recognized part operates across a DC and AC voltage range of 0 V to 32 V with a 4 A current rating at 40° C, 0.8 kV surge resistance, and IP65 and IP67 degrees of protection. Constructed with a housing of polyamide, die-cast zinc, and nickel plating, it accommodates approved cable diameters from 2.9 mm to 5.1 mm within an ambient temperature range of -25 °C to 85 °C. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562028
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562028.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-101 | EN 61984
- Certication
- c UL us - recognized (OL)
- Contact durability
- 3
- Product weight
- 17.5 g
- Electrical connection
- 4-pin | A-coded | M12x1 | Straight plug/insulation displacement connector
- DC operating voltage range
- 0 V...32 V
- Operating voltage range AC
- 0 V...32 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 0.8 kV
- Approved cable diameter
- 2.9 mm...5.1 mm
- Individual wire diameter
- 0.1 mm
- Wire diameter
- 0.9 mm...1.6 mm
- Connection cross section
- 0.14 mm²...0.34 mm²
- Degree of protection
- IP65 | IP67
- Ambient temperature
- -25 °C...85 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Contamination level
- 3
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- PA | Die-cast zinc | Nickel-plated
- Material of screw-type lock
- Die-cast zinc, nickel-plated
- Seals material
- FPM | PUR
- Material of pin contacts
- Gold-plated
- Permissible insulating sheath
- PP | PVC | TPE-E
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562028. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
