Festo
562051

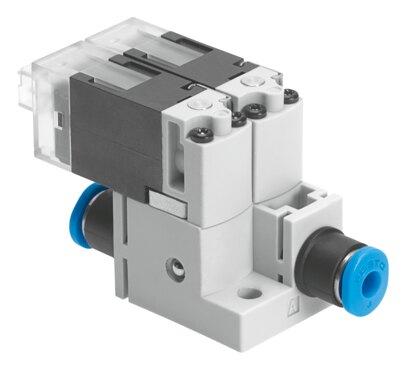

Vacuum valve MHA1-2X2/2G-1,5-3-3-3
The Festo part number 562051 is a 20 mm wide industrial component featuring a directly controlled, 2x2/2 closed, monostable valve function with a soft sealing principle and negative overlap. Operating at 24V DC with an operating pressure range of 0 bar to 1.5 bar, this unit delivers a normal nominal flow rate of 30 l/min through QS-3 pneumatic working ports and utilizes a mechanical spring reset method alongside a non-detenting manual override. It provides IP40 protection, features non-throttled exhaust air with a 1.5 mm nominal width in any mounting position, and carries CE and UKCA markings per EU and UK EMC and RoHS directives. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562051
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562051.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x2/2 closed, monostable
- Actuation type
- Electrical
- Width
- 20 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 30 l/min
- Pneumatic working port
- QS-3
- Operating voltage
- 24V DC
- Operating pressure
- 0 bar...1.5 bar
- Reset method
- Mechanical spring
- Degree of protection
- IP40
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Nominal width
- 1.5 mm
- Width dimension
- 20 mm
- Exhaust air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- directly
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Signal status display
- LED
- Operating pressure, reversible
- -0.95 bar...0 bar
- Suitability for vacuum
- Yes
- Standard ow rate (standardized according to DIN 1343)
- 30 l/min
- Max. switching frequency
- 10 Hz
- Switching time off
- 6 ms
- On switching time
- 6 ms
- Duty cycle
- 100%
- Coil characteristics
- 24 V DC: low-current phase 0.7 W, high-current phase 3.0 W
- Permissible voltage uctuations
- +/- 10%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562051. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
