562160

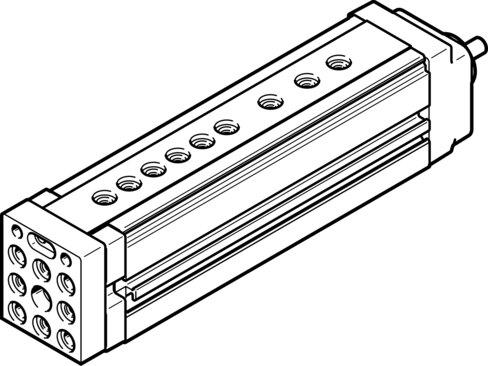

Name: Festo 562160 Mini slide EGSL-BS-35-50-8P
Brand: Festo

Mini slide EGSL-BS-35-50-8P

The Festo 562160 is an electrical mini-slide featuring a structural design with a guide and ball screw, driven by either a stepper or servo motor. It provides a 50 mm working stroke, a size 35 designation, an 8 mm screw diameter, and an 8 mm/U spindle pitch, operating with a ball bearing cage guide in any mounting position. The unit delivers a maximum speed of 0.5 m/s, a maximum acceleration of 25 m/s², a repetition accuracy of ±0.015 mm, and a 100% duty cycle while maintaining a 60 dB(A) noise level. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 562160
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 562160.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 50 mm
Size: 35
Run. parallelism along Z-axis: 0.02 mm
Parallelism: 0.05 mm
Reversing backlash: 50 µm
Screw diameter: 8 mm
Spindle pitch: 8 mm/U
Mounting position: Any
Guide: Ball bearing cage guide
Structural design: Electrical mini-slide | Guide | With ball screw
Motor type: Stepper motor | Servo motor
Spindle type: Ball screw
Position sensing: Via proximity switch
Max. acceleration: 25 m/s²
Max. speed: 0.5 m/s
Repetition accuracy: ±0.015 mm
Duty cycle: 100%
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Noise level: 60 dB(A)
Degree of protection: IP40
Ambient temperature: 0 °C...60 °C
Continuous feed force: 50 N
Max. driving torque: 0.127 Nm
Max. force Fy: 512 N
Max. force Fz: 512 N
Max. torque Mx: 6.2 Nm
Max. torque My: 6 Nm
Max. torque Mz: 6 Nm

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 562160. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
