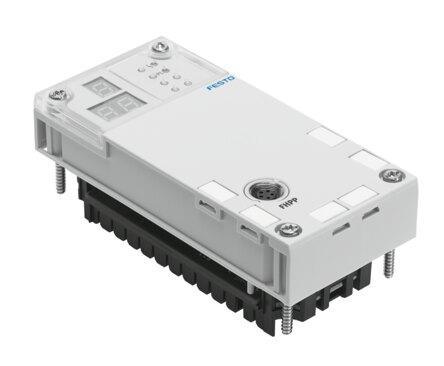

Reference imageConfirm configuration by manufacturer part number.
Festo
562214
Control block CPX-CM-HPP
This Festo industrial component, part number 562214, features a CAN bus control interface, an M9 5-pin fieldbus interface, and supports the FHPP protocol with a 1 Mbit/s baud rate across four axes. Measuring 50 mm by 107 mm by 55 mm with a product weight of 140 g, the device operates on a nominal DC voltage of 24 V within an 18 V to 30 V range while consuming a typical intrinsic current of 80 mA. It provides channel-oriented and module-oriented diagnostics, undervoltage and short-circuit module detection, diagnostic memory, MMI handheld terminal configuration support, and channel forcing parameterization within an ambient temperature range of -5 °C to 50 °C. Rated to IP65 and IP67 protection classes with a 10 ms power failure buffering, the unit conforms to the EU low voltage directive, VDMA24364-B2-L LABS conformity, and RoHS material regulations. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562214
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562214.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 140 g
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- Degree of protection
- IP65 | IP67
- Storage temperature
- -20 °C...70 °C
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Power failure buffering
- 10 ms
- Total number of axes
- 4
- Dimensions W x L x H
- 50 mm x 107 mm x 55 mm
- Control interface
- CAN bus
- Fieldbus interface
- 1x socket M9, 5-pin
- Device-specic diagnostics
- Channel-oriented and module-oriented diagnostics | Undervoltage/short circuit of modules | Diagnostic memory
- Conguration support
- MMI handheld terminal
- Parameterization
- forcing of channels | System Parameters
- Baud rate
- 1 Mbit/s
- DC operating voltage range
- 18 V...30 V
- Nominal operating voltage DC
- 24 V
- Protocol
- FHPP
- Intrinsic current consumption at nominal operating voltage
- Type. 80 mA
- Max. address capacity outputs
- 32 byte
- Max. address capacity inputs
- 32 byte
- LED display (product-specic)
- Error | PL: Load supply
- Housing material
- PA-reinforced | PC
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562214. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
