Festo
562227

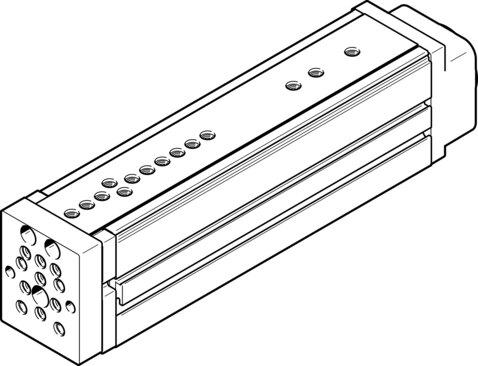

Mini slide EGSL-BS-55-100-5P
The Festo 562227 is an electrical mini-slide featuring an integrated ball screw and a ball bearing cage guide, compatible with either stepper or servo motors. It delivers a 100 mm working stroke, a maximum speed of 0.4 m/s, a maximum acceleration of 25 m/s², and a repetition accuracy of ±0.015 mm with a 100% duty cycle. Position sensing is accomplished via proximity switch, operating with a Z-axis running parallelism of 0.04 mm, 0.05 mm parallelism, a 50 µm reversing backlash, a 12 mm screw diameter, and a 5 mm/U spindle pitch in any mounting position. This unit possesses a CRC of 0, VDMA24364 Zone III LABS conformity, and generates a noise level of 65 dB(A) at size 55. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562227
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562227.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 100 mm
- Size
- 55
- Run. parallelism along Z-axis
- 0.04 mm
- Parallelism
- 0.05 mm
- Reversing backlash
- 50 µm
- Screw diameter
- 12 mm
- Spindle pitch
- 5 mm/U
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Structural design
- Electrical mini-slide | Guide | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Position sensing
- Via proximity switch
- Max. acceleration
- 25 m/s²
- Max. speed
- 0.4 m/s
- Repetition accuracy
- ±0.015 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Noise level
- 65 dB(A)
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Continuous feed force
- 200 N
- Max. driving torque
- 0.415 Nm
- Max. force Fy
- 1047 N
- Max. force Fz
- 1047 N
- Max. torque Mx
- 33.1 Nm
- Max. torque My
- 31 Nm
- Max. torque Mz
- 31 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562227. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
