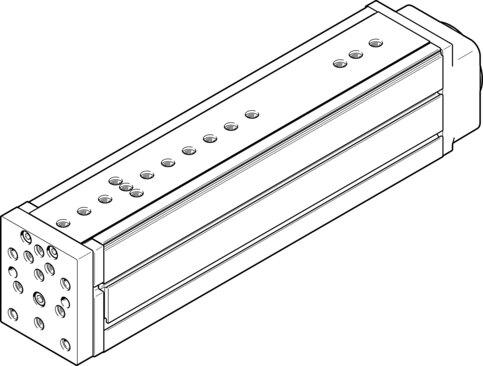

Reference imageConfirm configuration by manufacturer part number.
Festo
562231
Mini slide EGSL-BS-75-200-10P
The Festo 562231 is an electrical mini-slide featuring a ball screw design, a size of 75, and a 200 mm working stroke driven by either a stepper or servo motor. It incorporates a ball bearing cage guide delivering a 0.08 mm Z-axis running parallelism, a 0.1 mm parallelism, a 50 µm reversing backlash, a 20 mm screw diameter, and a 10 mm/U spindle pitch. This component achieves a maximum speed of 0.65 m/s, a maximum acceleration of 25 m/s², a repetition accuracy of ±0.015 mm, a 100% duty cycle, and a 65 dB(A) noise level with position sensing via a proximity switch, any mounting position, CRC 0 corrosion resistance, and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562231
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562231.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 200 mm
- Size
- 75
- Run. parallelism along Z-axis
- 0.08 mm
- Parallelism
- 0.1 mm
- Reversing backlash
- 50 µm
- Screw diameter
- 20 mm
- Spindle pitch
- 10 mm/U
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Structural design
- Electrical mini-slide | Guide | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Position sensing
- Via proximity switch
- Max. acceleration
- 25 m/s²
- Max. speed
- 0.65 m/s
- Repetition accuracy
- ±0.015 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Noise level
- 65 dB(A)
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Continuous feed force
- 300 N
- Max. driving torque
- 1.654 Nm
- Max. force Fy
- 714 N
- Max. force Fz
- 714 N
- Max. torque Mx
- 48.5 Nm
- Max. torque My
- 33.8 Nm
- Max. torque Mz
- 33.8 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562231. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
