Name: Festo 562248 Push-in T-connector NEDU-M12D4-M12T4-IS
Brand: Festo

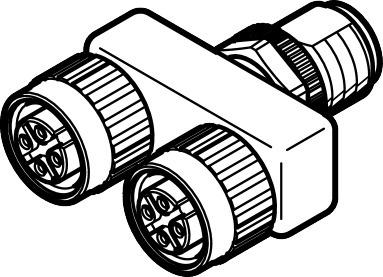

Push-in T-connector NEDU-M12D4-M12T4-IS

The Festo industrial component, part number 562248, features an M12x1 4-pin A-coded socket-socket-plug electrical connection supporting a DC operating voltage range of 0 V to 30 V. Constructed with a die-cast zinc and reinforced TPE-U housing, FPM seals, and gold-plated copper alloy pin contacts, the unit delivers IP65 and IP67 protection alongside a CRC 3 high corrosion resistance rating. It complies with EN 61076-2-101, VDMA24364-B2-L LABS conformity, and RoHS material restrictions while operating within an ambient temperature range of -25 °C to 85 °C and accommodating ATEX Zone 1, 2, 21, and 22 hazardous environments. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 562248
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 562248.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: EN 61076-2-101
Explosion prevention and protection: Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Contact durability: 100
Type of mounting: Screw-in
Product weight: 25.5 g
Electrical connection: 4-pin/4-pin/4-pin | A-coded/A-coded/A-coded | Socket / Socket / Plug | M12x1 / M12x1 / M12x1
DC operating voltage range: 0 V...30 V
Degree of protection: IP65 | IP67
Ambient temperature: -25 °C...85 °C
LABS (PWIS) conformity: VDMA24364-B2-L
Note on materials: RoHS compliant
Corrosion resistance class (CRC): 3 - High corrosion stress
Housing material: TPE-U(PU)-reinforced | Die-cast zinc
Material of union nut: PA-reinforced
Seals material: FPM
Material of pin contacts: Copper alloy | Gold-plated

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 562248. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
