Festo
562393

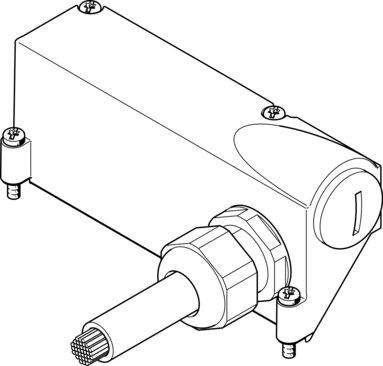

Connecting cable VMPAL-KM-S-SD44-IP67-
The Festo part number 562393 is an industrial component featuring a cable with a plug electrical connection and a standard cable characteristic. Designed with a 9.6 mm cable diameter, a 36 x 0.25 mm² cable design, a PVC cable sheath, and a minimum cable bending radius of 115 mm, this assembly provides an IP67 degree of protection as per IEC 60529 and a moderate corrosion resistance class of CRC 2. It operates within an ambient temperature range of -5 °C to 80 °C with flexible cable installation, features VDMA24364-B1/B2-L LABS conformity, and carries CE and UKCA markings as per EU and UK RoHS instructions respectively alongside RoHS compliant materials. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562393
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562393.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Electrical connection
- Cable with plug
- Cable characteristic
- Standard
- Min. cable bending radius
- 115 mm
- Cable diameter
- 9.6 mm
- Cable design
- 36 x 0.25 mm²
- Degree of protection
- IP67 | As per IEC 60529
- Ambient temperature with exible cable installation
- -5 °C...80 °C
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Material of cable sheath
- PVC
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562393. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
