Festo
562394

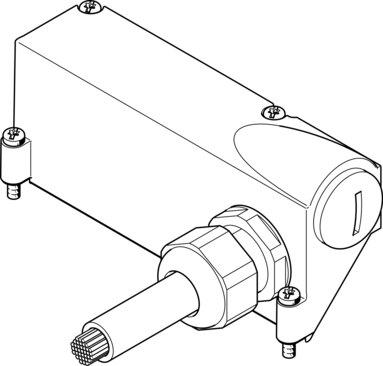

Connecting cable VMPAL-KMSK-S-SD25-IP67-
The Festo 562394 is an industrial component featuring a cable with plug design comprising twenty-five 0.34 mm² conductors and a 12.5 mm cable diameter with a 63 mm minimum bending radius suitable for energy chains. Built with a TPE-U(PU) cable sheath providing IP67 degree of protection as per IEC 60529 and a moderate corrosion resistance class of CRC 2, this unit operates within a flexible cable installation ambient temperature range of -5 °C to 80 °C. The materials are RoHS compliant and conform to VDMA24364-B1/B2-L LABS (PWIS), carrying CE marking as per the EU RoHS directive and UKCA marking to UK RoHS instructions. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562394
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562394.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Electrical connection
- Cable with plug
- Cable characteristic
- Suitable for energy chains
- Min. cable bending radius
- 63 mm
- Cable diameter
- 12.5 mm
- Cable design
- 25 x 0.34 mm²
- Degree of protection
- IP67 | As per IEC 60529
- Ambient temperature with exible cable installation
- -5 °C...80 °C
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Material of cable sheath
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562394. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
