Festo
562560

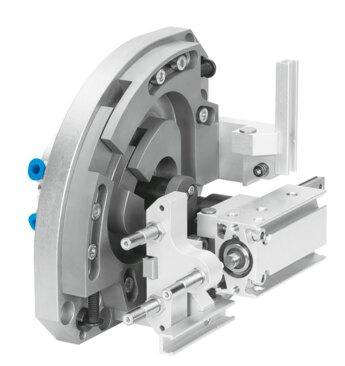

Handling module HSW-12-AP-AW
The Festo part number 562560 is an industrial component featuring a structural design combining a linear guide, ball bearing, quarter turn actuator, and positively driven motion sequence, with a size 12 and an operating pressure range of 4 bar to 8 bar. This unit provides a Z-stroke of 80 mm to 100 mm, a working stroke of 15 mm to 25 mm, a maximum wait position module Z-stroke of 15 mm, and a max linear stroke at a 90-degree swivel angle of 142 mm, supporting a maximum payload of 1 kg and a minimum cycle time of 0.8 s. Position sensing is accomplished via proximity switch, and cushioning is provided by a pneumatic shock absorber at both ends with a soft characteristic curve. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562560
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562560.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 15 mm...25 mm
- Size
- 12
- Max. linear stroke at 90° swivel angle
- 142/142 mm
- Maximum wait position module Z-stroke
- 15 mm
- Z-stroke
- 80 mm...100 mm
- Cushioning
- Pneumatic shock absorber at both ends | Soft characteristic curve
- Mounting position
- Any
- Structural design
- Linear guide plus ball bearing | Quarter turn actuator | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Operating pressure
- 4 bar...8 bar
- Minimum cycle time
- 0.8 s
- Repetition accuracy end positions
- +/-0.02 mm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Max. torque Mx
- 1.5 Nm
- Max. torque My
- 1.5 Nm
- Max. torque Mz
- 1.5 Nm
- Max. payload
- 1 kg
- Maximum process force in y direction
- 35 N
- Theoretical force at 6 bar
- 35 N
- Product weight
- 3060 g
- Type of mounting
- Via through-hole and centering sleeve
- Wait position pneumatic connection
- M5
- Pneumatic connection
- M5
- Stops material
- High-alloy steel
- Spring pressure piece material
- High-alloy steel
- Base plate material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562560. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
