Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

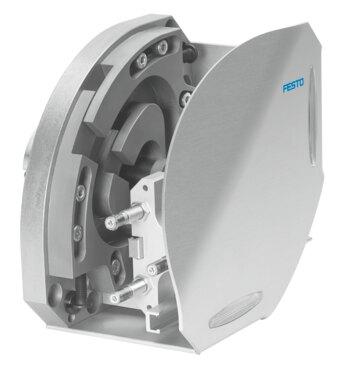

Reference imageConfirm configuration by manufacturer part number.
Festo
562562
Handling module HSW-10-AP-SD-AW
Engineered with a linear guide plus ball bearing, a quarter turn actuator, and a positively driven motion sequence, the Festo part number 562562 is an industrial component featuring a size 10 designation and an operating pressure range of 4 bar to 8 bar. This assembly delivers a working stroke of 9 mm to 15 mm, a Z-stroke of 80 mm to 100 mm, a maximum wait position module Z-stroke of 10 mm, and a maximum linear stroke of 90/90 mm at a 90° swivel angle, supported by pneumatic shock absorber cushioning at both ends with a soft characteristic curve. It accommodates a maximum payload of 0.5 kg, maximum torques Mx, My, and Mz of 0.6 Nm each, and achieves a repetition accuracy at end positions of +/-0.02 mm with a minimum cycle time of 0.6 s within an ambient temperature range of 0 °C to 60 °C. Position sensing is accomplished via proximity switch, operating on compressed air conforming to ISO 8573-1:2010 [7:-:-] with VDMA24364-B2-L LABS conformity and optional oil lubrication. Please submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562562
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562562.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 9 mm...15 mm
- Size
- 10
- Max. linear stroke at 90° swivel angle
- 90/90 mm
- Maximum wait position module Z-stroke
- 10 mm
- Z-stroke
- 80 mm...100 mm
- Cushioning
- Pneumatic shock absorber at both ends | Soft characteristic curve
- Mounting position
- Any
- Structural design
- Linear guide plus ball bearing | Quarter turn actuator | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Operating pressure
- 4 bar...8 bar
- Minimum cycle time
- 0.6 s
- Repetition accuracy end positions
- +/-0.02 mm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Max. torque Mx
- 0.6 Nm
- Max. torque My
- 0.6 Nm
- Max. torque Mz
- 0.6 Nm
- Max. payload
- 0.5 kg
- Maximum process force in y direction
- 30 N
- Theoretical force at 6 bar
- 30 N
- Product weight
- 1460 g
- Type of mounting
- Via through-hole and centering sleeve
- Wait position pneumatic connection
- M5
- Pneumatic connection
- M3
- Stops material
- High-alloy steel
- Cover material
- Wrought aluminum alloy | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562562. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
