Festo
562563

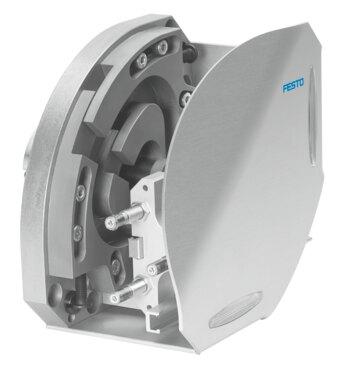

Handling module HSW-12-AP-SD-AW
The Festo 562563 industrial component combines a linear guide with ball bearing, a quarter turn actuator, and a positively driven motion sequence featuring a 12 size, a working stroke of 15 mm to 25 mm, and a Z-stroke of 80 mm to 100 mm. Designed with pneumatic shock absorbers at both ends having a soft characteristic curve, it operates at pressures from 4 bar to 8 bar using compressed air as per ISO 8573-1:2010 [7:-:-] and provides position sensing via proximity switch with a repetition accuracy of +/-0.02 mm at the end positions. This unit achieves a minimum cycle time of 0.8 s, a max linear stroke of 142/142 mm at a 90° swivel angle, a maximum wait position module Z-stroke of 15 mm, and handles a max payload of 1 kg alongside max torques Mx, My, and Mz of 1.5 Nm in an ambient temperature range of 0 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562563
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562563.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 15 mm...25 mm
- Size
- 12
- Max. linear stroke at 90° swivel angle
- 142/142 mm
- Maximum wait position module Z-stroke
- 15 mm
- Z-stroke
- 80 mm...100 mm
- Cushioning
- Pneumatic shock absorber at both ends | Soft characteristic curve
- Mounting position
- Any
- Structural design
- Linear guide plus ball bearing | Quarter turn actuator | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Operating pressure
- 4 bar...8 bar
- Minimum cycle time
- 0.8 s
- Repetition accuracy end positions
- +/-0.02 mm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Max. torque Mx
- 1.5 Nm
- Max. torque My
- 1.5 Nm
- Max. torque Mz
- 1.5 Nm
- Max. payload
- 1 kg
- Maximum process force in y direction
- 35 N
- Theoretical force at 6 bar
- 35 N
- Product weight
- 3260 g
- Type of mounting
- Via through-hole and centering sleeve
- Wait position pneumatic connection
- M5
- Pneumatic connection
- M5
- Stops material
- High-alloy steel
- Cover material
- Wrought aluminum alloy | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562563. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
