Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

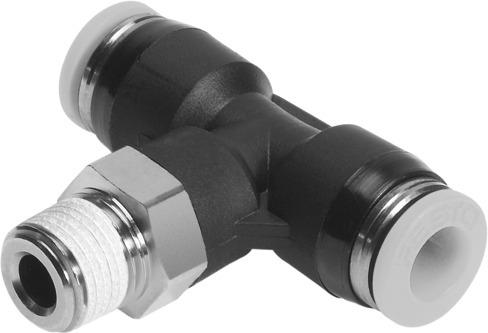

Reference imageConfirm configuration by manufacturer part number.
Festo
562579
Push-in T-fitting QBT-1/8-3/8-U-M
Engineered by Festo, part number 562579 is a T-shaped industrial component featuring a standard size, a 0.236 in nominal width, and a PBT housing with a gray releasing ring. This unit operates with compressed air as per ISO 8573-1:2010 [7:-:-] across a pressure range of 13.775 psi to 145 psi and temperatures between 32 °F and 140 °F. It incorporates an R1/8 external thread pneumatic connection 1, a connection 2 for 3/8" outside diameter pneumatic tubing, an external hexagon SW17 mounting type, and a coated screwed plug seal. Please submit part number 562579, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562579
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562579.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.236 in
- Type of seal on screwed plug
- Coating
- Design
- T-shape
- Pack size
- 5
- Operating pressure for entire temperature range
- 0.095 MPa...1 MPa | 0.95 bar...10 bar | 13.775 psi...145 psi
- Maritime classication
- See certicate
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 1.1 oz
- Type of mounting
- External hexagon SW17
- Pneumatic connection 1
- External thread R1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 3/8"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Material of threaded seal
- NBR
- Releasing ring material
- POM
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562579. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
