Festo
562640

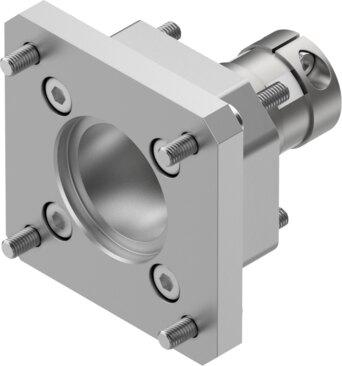

Axial kit EAMM-A-P5-28B-42A
The Festo part number 562640 is an industrial component featuring a nominal length of 16.5 mm, a product weight of 60 g, and a transferable torque of 1.1 Nm supporting a maximum rotational speed of 10000 rpm. This RoHS compliant unit incorporates actuator interface code P5-28B, motor in interface code 42A, and coupling housing interface code 28B, alongside a mass moment of inertia of 0.28 kgmm² and VDMA24364-B2-L LABS conformity. It operates within ambient temperatures from -10 °C to 60 °C, storage temperatures between -25 °C and 60 °C, and relative air humidity levels of 0 to 95% while maintaining an IP40 degree of protection in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562640
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562640.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 16.5 mm
- Mounting position
- Any
- Max. rotational speed
- 10000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 0.28 kgmm²
- Transferable torque
- 1.1 Nm
- Product weight
- 60 g
- Interface code, actuator
- P5-28B
- Interface code, motor in
- 42A
- Interface code, coupling housing
- 28B
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562640. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
